360 Power Quality -Providing the highest levels of quality, reliability, and efficiency in backup power.

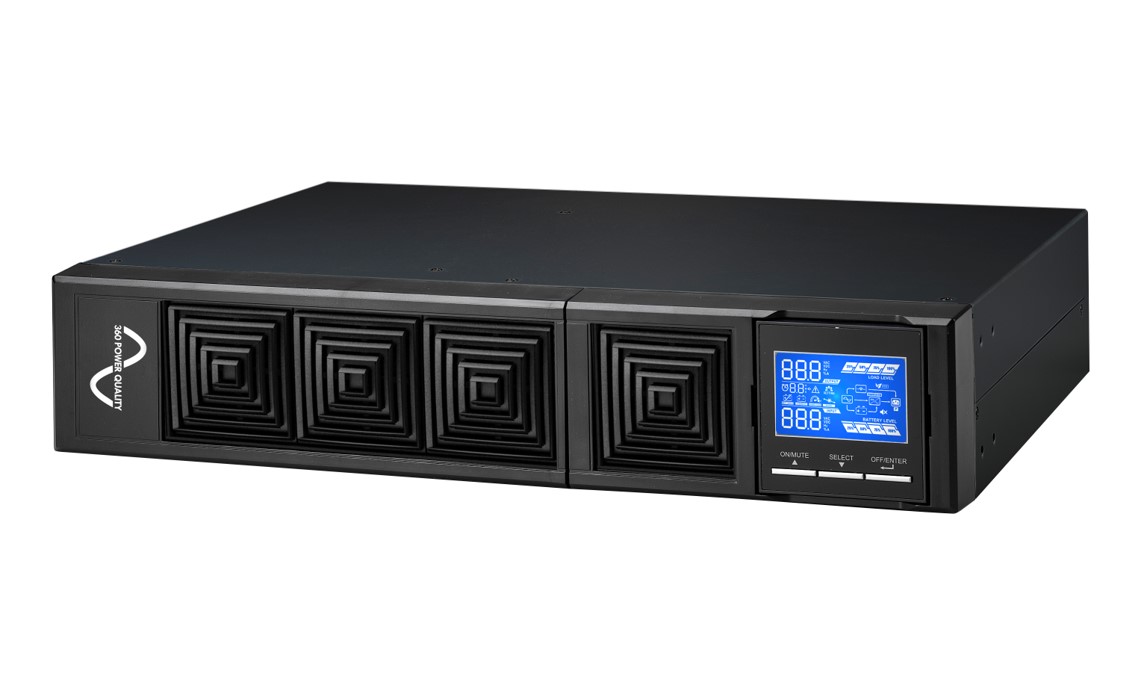

Platinum Series UPS 1Ph 1-3kVA
True On-line Double Conversion Diamond Plus UPS Series has been designed to backup various applications. Small data centers, Medical Lab equipment, light industrial facilities all require rugged UPS equipment.
Features:
Extended Battery Cabinets: All Platinum Series units are supported with additional battery backup by using the extended battery cabinets. Extended battery cabinets are optional and allow users to have extended run-times dependent on requirements.
Communication Cards: Available communication cards include the following: Standard SNMP Protocol, MODBUS Communication and WiFi Communication.
Conformal Coated Boards: Conformal coated boards allows for the Platinum Series to be used in “light industrial” applications. Boards that are conformal coated include the Main PCB, Communication Card, Charger, and Control boards.
Warranty: Platinum series comes with a two year warranty on the electronics, one year warranty on the batteries. For additional warranty options please contact the factory.

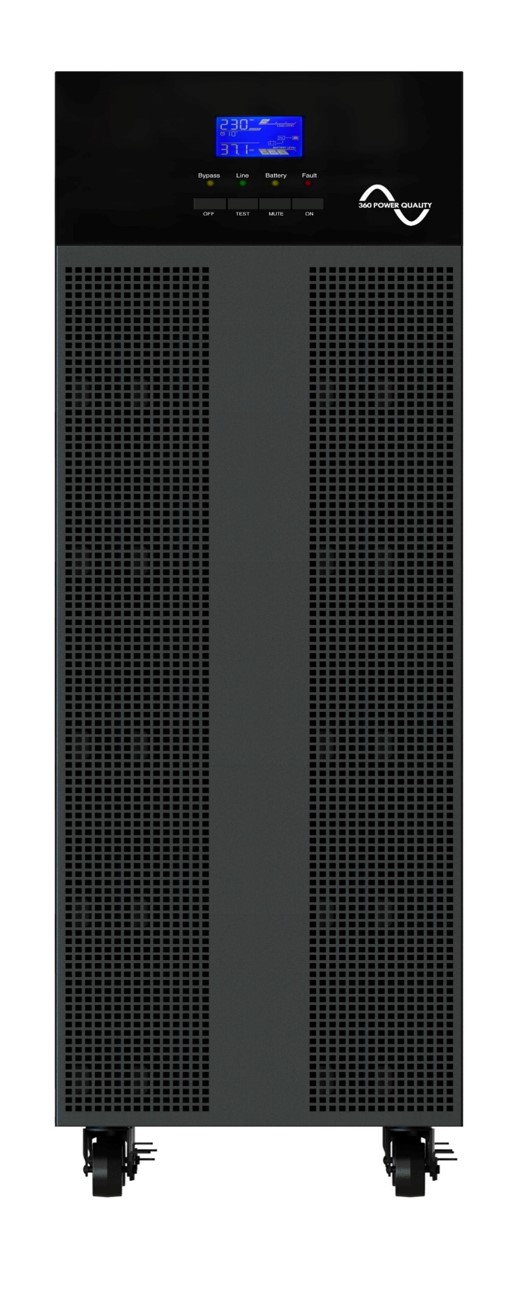

All Titanium Series UPS units include an internal isolation transformer. This rugged design ensures consistent, reliable power quality to all instruments.
Features:
Isolated Transformer: All Titanium Series UPS units include an internal isolation transformer. This rugged design ensures low common mode noise and low normal mode noise.
In-rush Capabilities: The Titanium Series UPS systems include a high in-rush capability. Supporting an overload for 150% will allow the user to properly size their UPS.
Customized Back Panels: Back panels are customized per customer. Allows for specific designs to ensure all power requirements are supported.
External Maintenance Bypass Systems: External Maintenance Bypass Systems are available in two types – isolated and non-isolated version. Consult factory for recommendations.

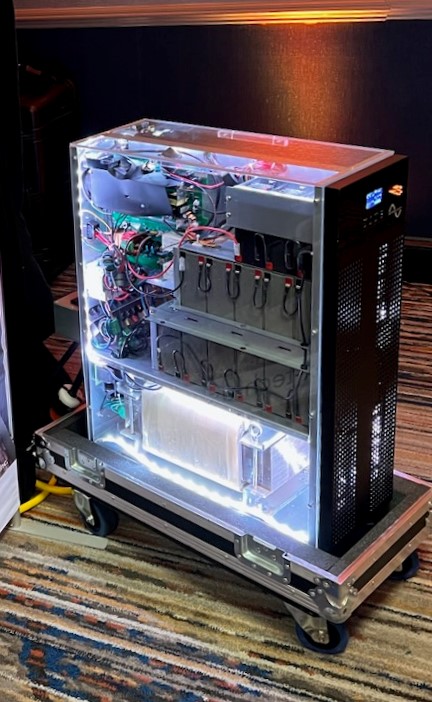

All Titanium Series UPS units include an internal isolation transformer. This rugged design ensures consistent, reliable power quality to all instruments.
Features:
Isolated Transformer: All Titanium Series UPS units include an internal isolation transformer. This rugged design ensured low common mode noise and low normal mode noise.
In-rush Capabilities: The Titanium Series UPS systems include a high in-rush capability. Supporting an overload for 150% will allow the user to properly size their UPS.
Customized Back Panels: Back panels are customized per customer. Allows for specific designs to ensure all power requirements are supported.
External Maintenance Bypass Systems: External Maintenance Bypass Systems are available in two types – isolated and non-isolated version. Consult factory for recommendations.
Specifications:
Power Rating: 5.2kVA / 5.2kW - 10kVA / 10kW
Input Voltage: 208/220/230/240VAC / +28%/ -15% @ full load
Frequency Range: 46Hz ~ 54Hz @ 50Hz System, 56Hz ~ 64Hz @ 60Hz System

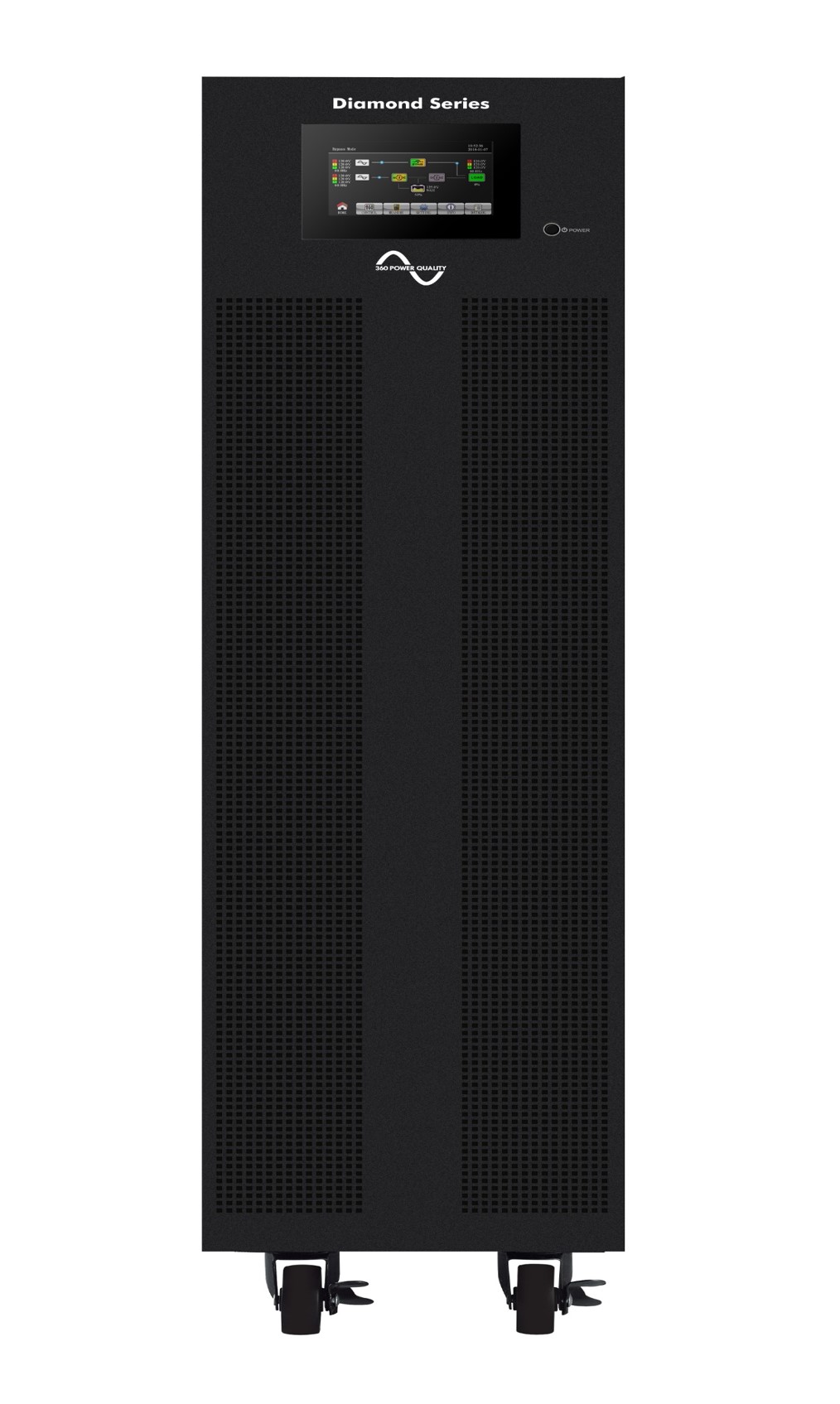

True On-line Double Conversion Diamond Plus UPS Series has been designed to backup various applications. Small data centers, medical lab equipment, light industrial facilities all require highly reliable and consistent UPS back-up.
Features:
Power Walk-in Function: The Diamond Series is designed to have flexible power walk-in by way of adjusting the power walk-in time. This setting will optimize generator sizing and reduce the impact to the AC source.
Parallel Operation w/ Common Battery: The system can be operated in up to six units in parallel. Parallel UPS systems can share common battery packs, which will greatly reduce the footprint and expense to reach the same back-up battery requirements.
Conformal Coated Boards: Conformal coated boards allows for the Diamond Series to be used in “light industrial” applications. Boards that are conformal coated include the Main PCB, Bypass, Charger, Parallel and Joint boards.
Powerful Charger: The Diamond series has a powerful built-in charger to support long runtime applications. With this unique charger, large capacity or multiple battery cabinets have a reduced footprint.
We have partnered with several of the best UPS manufacturers in the industry. They have been chosen on the basis of design characteristics and reliability. Our technicians are thoroughly trained on each brand. We can supply and maintain any type of uninterruptable power system.
Select one of our partnered manufacturers below to view their products:
Have any Questions about our products or services?
