XTREME Power PRODUCTS

Xtreme Power, a global provider of power quality solutions, is dedicated to providing the most reliable power protection for mission critical applications. Its innovative product portfolio ensures customer peace of mind with ideal solutions for maximum uptime. Xtreme Power manufactures UPS, power distribution units, and portable cooling products for a global network of OEMs and distributors. Headquartered in Denver, CO, our distribution centers across the U.S. and Europe ensure fast and accurate delivery.

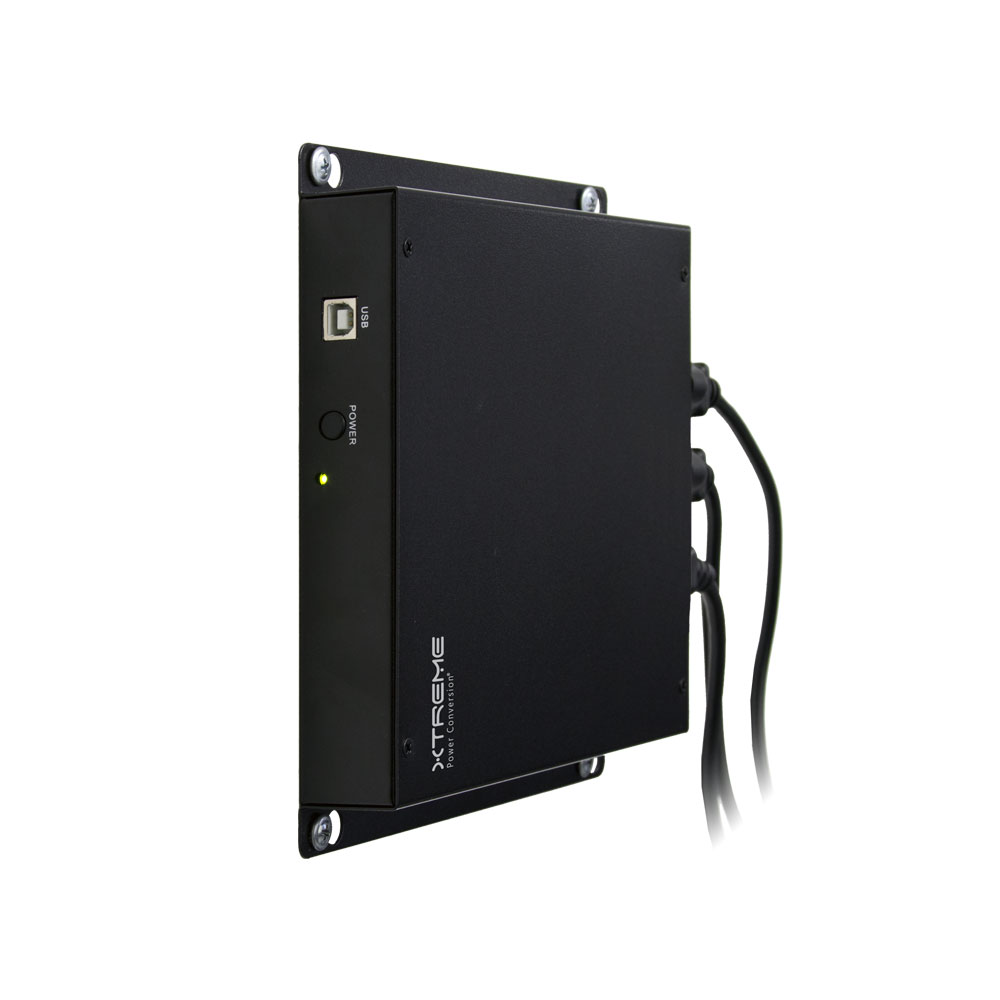

Xtreme Power J60



Xtreme J60 advanced design combines the benefits of lithium ion powered UPS and advanced surge suppression technology. Slim form factor (just 1.25”), wall mounting, and easy access receptacles make J60 ideal for mounting behind thin display screens in used in hotels, restaurants, hospitals, campuses, airports and other commercial areas.

While J60’s compact design is appealing to the digital signage industry, it is also excellent for providing protection to kiosks, gaming machines, computers, point-of-sale equipment, and small printers. The J60 will easily fit where conventional UPS will not.

Features:
  • Power outage protection from 6 minutes to hours
  • Lithium batteries provide high temperature performance with long term reliability
  • UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V)
  • CE, RoHS, TAA compliant (230V)
  • Brackets allow easy mounting to wall, ceiling or any flat surface
  • Primary applications: digital signage, kiosks, gaming machines, and Point of Sale (POS)
  • 5 years electronics, 5 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 350-600 VA
  • Voltage: 120V, 240V
  • Frequency: 50/60 Hz
  • Configuration: Wall mount

Link to product brochure:
Xtreme Power J60

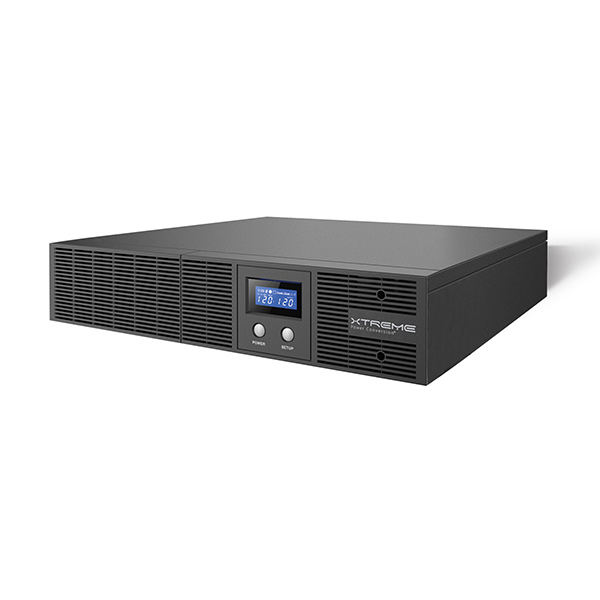

Xtreme Power V80



V80 is a pure sine wave line interactive UPS that protects critical data and equipment form power problems while supplying clean and reliable network grade power.

V80 units have the highest efficiency ratings available, providing utility cost savings at all load levels. V80 design provides flexible mounting including tower, wall and rack mounting. V80 models combine high performance with value pricing.

Features:
  • 700VA, 1000VA, 1500VA, 2000VA
  • Pure sine wave output
  • Automatic voltage regulation (AVR)
  • Tower, rack and wall mounting available
  • UL and cUL listed, RoHS compliant
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 700-2000 VA
  • Voltage: 82-148V
  • Frequency: 50/60 Hz
  • Configuration: Wall, tower and rack mount

Link to product brochure:
Xtreme Power V80

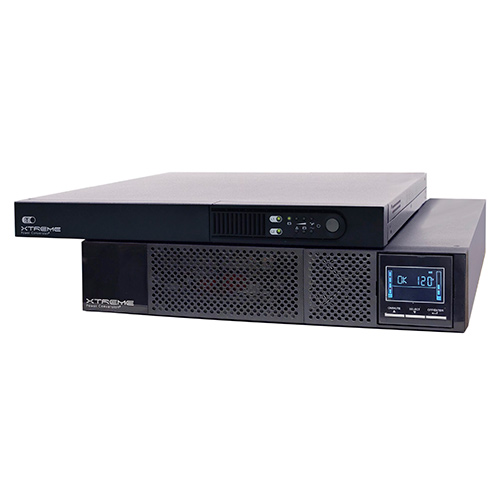

Xtreme Power P91



The Xtreme Power P91 UPS is an online double conversion UPS solution which offers power conditioning and outage protection in a compact and flexible rack/tower form factor.

With near unity power factor operation (2U units), the Xtreme Power P91 provides maximum usable power to your equipment. Xtreme Power protects your business with a standard, three-year or optional five-year product warranty.

Features:
  • Available models: 1000VA(1U/2U), 1500VA, 2000VA, 3000VA
  • Individual switchable receptacles (1U)
  • Hot swappable battery design
  • Tower, wall, 2-post and 4-post rack mounting configurations
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, RoHS, FCC A, FCC B
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 1000-3000 VA
  • Voltage: 120V
  • Frequency: 50/60 Hz
  • Configuration: Wall mount

Link to product brochure:
Xtreme Power P91

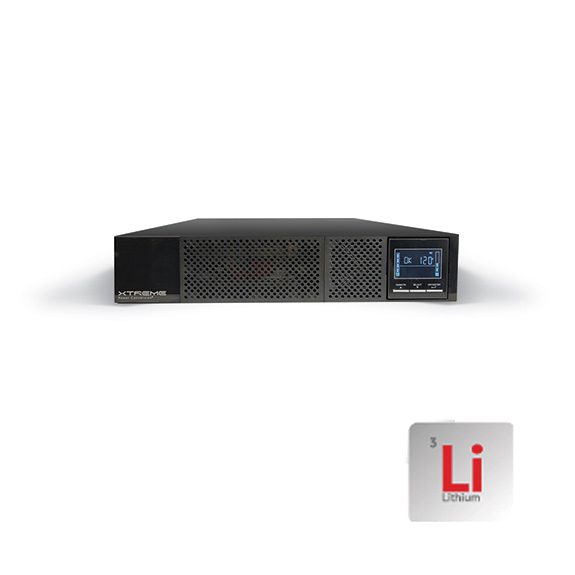

Xtreme Power P91Li



When compared to typical lead acid batteries, lithium-ion batteries provide more than twice the life, higher temperature tolerance, longer runtime, and faster recharge. Online double conversion technology makes P91 Li UPS ideal for protection of network, server, edge and distributed IT applications.

P91 Li UPS lithium-ion batteries provide more than twice the life, higher temperature tolerance, longer runtime, and faster recharge than conventional lead-acid UPS. Online double conversion technology makes P91 Li UPS ideal for protection of the most critical network, server, edge and distributed IT applications.

Features:
  • Available models: 1500VA, 2000VA, 3000VA
  • Hot swappable battery design
  • Hot swappable battery design
  • Tower, wall, 2-post and 4-post rack mounting configurations
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, RoHS, FCC A, UN38.3 for battery transportation
  • 6 years electronics, 6 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 1500-3000 VA
  • Voltage: 120V
  • Frequency: 50/60 Hz
  • Configuration: Wall and rack mount

Link to product brochure:
Xtreme Power P91Li

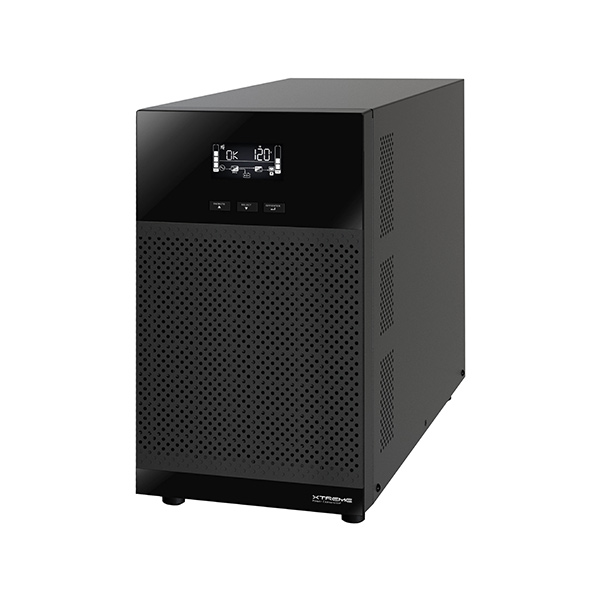

Xtreme Power T91



T91 UPS provides double conversion online power for light industrial applications, point of sale, servers, voice & data networks, and laboratories. T91 features unity output power factor to support up to 43% more critical loads than typical UPSs.

Extended battery runtimes are available from the T91 by adding up to seven matching battery packs.

T91 battery charger can be programmed to provide up to 8 amps of recharge current to insure batteries are recharged quickly and prepared for the next utility outage.

Features:
  • Available models: 120V, 700VA, 1000VA, 1500VA, 2000VA, 3000VA
  • Available 208/230V model: 2000VA
  • Extended battery packs available
  • Controlled load segments
  • UL, cUL, CE, RoHS, FCC B, FCC A
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 700-3000 VA
  • Voltage: 120V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power T91

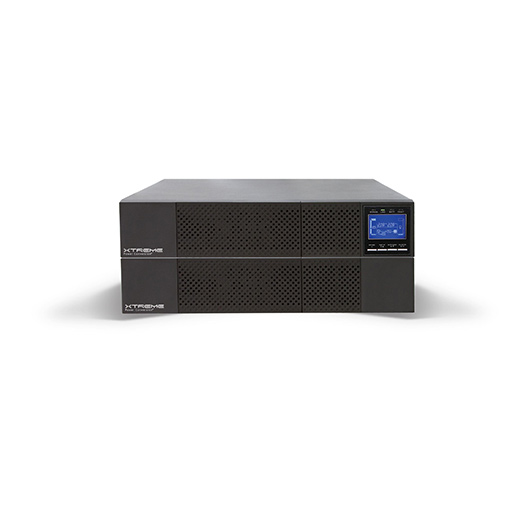

Xtreme Power P91 5-10kVA



Designed for high density critical loads, the P91 delivers industry leading reliability, efficiency and flexibility.

P91 can be configured for online or ECO mode operation for efficiency of up to 99%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements.

Features:
  • Available models: 5000VA, 6000VA, 10000VA
  • 99% efficiency in ECO mode
  • Unity power factor
  • Tower, wall, 2-post and 4-post rack mounting configurations
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, FCC, RoHS, CE (pending)
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 5-10 kVA
  • Voltage: 120-300V
  • Frequency: 50/60 Hz
  • Configuration: Tower, wall and rack mount

Link to product brochure:
Xtreme Power P91 5-10kVA

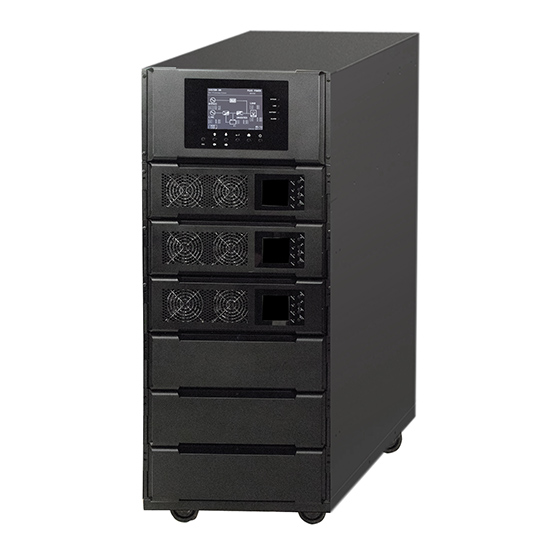

Xtreme Power M90-6S



Xtreme Power M90S UPS is a scalable, modular, flexible solution that combines continuous power availability and the highest efficiency for mission critical applications.

M90S provides unity power factor output (kVA = kW) providing maximum usable power and avoids any need to oversize the UPS. Maintenance bypass and output distribution within the UPS frame eliminate the need for external component connections, reducing installation costs.

Capacity, redundancy, battery runtime, and output receptacles can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.

Features:
  • Four capacities: 6kVA/6kW, 12kVA/12kW, 18kVA/18kW, 24kVA/24kW
  • Modular for capacity or redundancy
  • Unity output power factor (kVA =kW)
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 93% online efficiency
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 6-24 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power M90-6S



Xtreme Power TX91



Isolated online UPS provides the cleanest power in the most demanding conditions. The TX91 galvanic isolation transformer prevents common mode noise which is left exposed by typical transformerless online designs.

Isolated online applications include retail, industrial environments, laboratories, and any installation with grounding or noise issues.

TX91 provides dual output voltages and optional configurable PDU to meet a wide range of receptacle requirements.

Features:
  • Available models: 3.8kVA/3.8kW, 5kVA/5kW, 6kVA/6kW, 10kVA/10kW
  • Optional extended batteries
  • Auto restart
  • UL1778, cUL, FCC Class A, RoHS, TAA compliant
  • 3 years electronics, 3 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 3.8-10 kVA
  • Voltage: 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power TX91

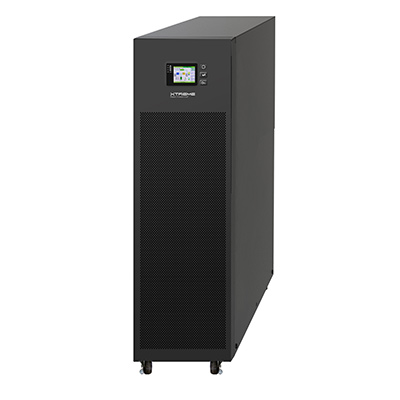

Xtreme Power E90



E90 online tower UPS provides economical three phase double conversion power for small data centers, network closets, retail stores, servers and industrial applications.

E90 features unity output power factor to support up to 25% more critical loads than similar competitive UPS. Up to 50% smaller than competitive units, the E90 provides an all-in-one, energy efficient solution.

Extended battery runtimes are available from the E90 by adding up to four matching battery packs. E90 battery charger can be programmed to provide up to 20 amps of recharge current to ensure batteries are recharged quickly and prepared for the next utility outage.

Features:
  • Available models: 10kVA, 15kVA, 20kVA
  • Unity power factor
  • Parallel operation
  • Extended battery runtimes with optional matching battery modules
  • UL 1778, CSA C22.2 No. 103.3-14, FCC Class A, Energy Star, RoHS
  • 2 years electronics, 2 years battery warranty (USA and Canada)

Specifications:
  • Power Rating: 10-20 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power E90

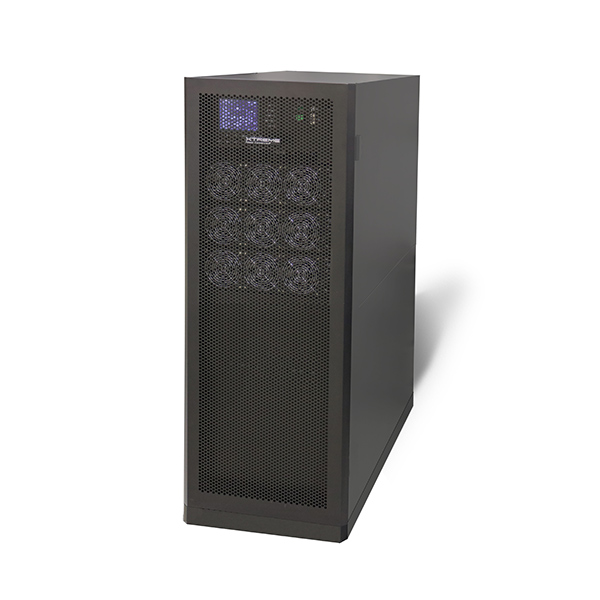

Xtreme Power M90



The M90 is a scalable modular online three phase UPS that protects critical data and equipment from power problems, while supplying clean and reliable network grade power.

The M90 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. Because the power modules are independent, they can be hot swapped without risk to the critical load.

As power requirements change, M90 modularity makes it easy to add modules and increase capacity.

Features:
  • Six capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW
  • Modular for capacity or redundancy
  • Hot swappable power modules
  • Up to 98% ECO mode or 94% online efficiency
  • Remote control and monitoring options
  • 2 year electronics, 2 year battery warranty (USA and Canada)

Specifications:
  • Power Rating: 15-60 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power M90

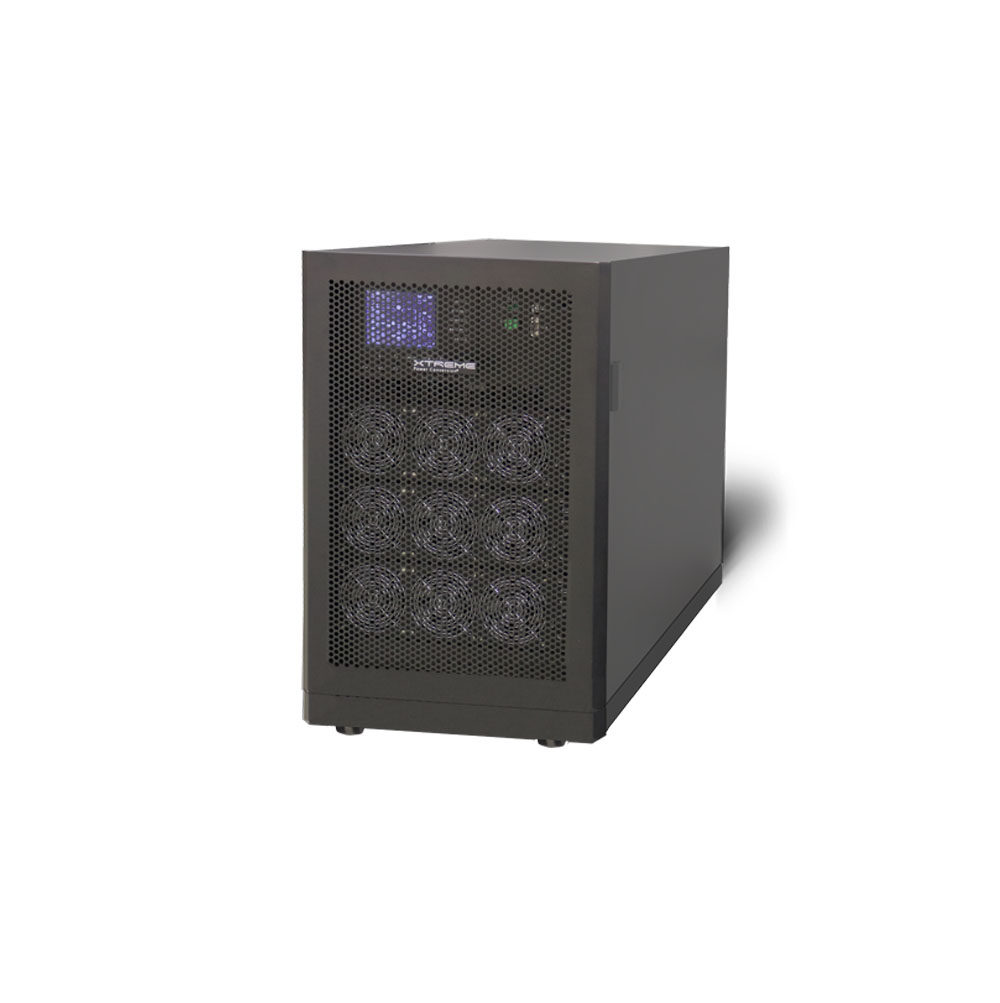

Xtreme Power M90L



The M90L is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90L can be configured with a fully redundant power module and long runtime external batteries. Should one module fail, the remaining modules smoothly take over the load. Because the power modules are independent, they can be hot swapped without risk to the critical load.

As power requirements change, M90L modularity makes it easy to add modules and increase capacity.

Features:
  • Six capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW
  • Modular for capacity or redundancy
  • Hot swappable power modules
  • Up to 98% ECO mode or 94% online efficiency
  • Remote control and monitoring options
  • 2 year electronics, 2 year battery warranty (USA and Canada)

Specifications:
  • Power Rating: 15-60 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power M90L

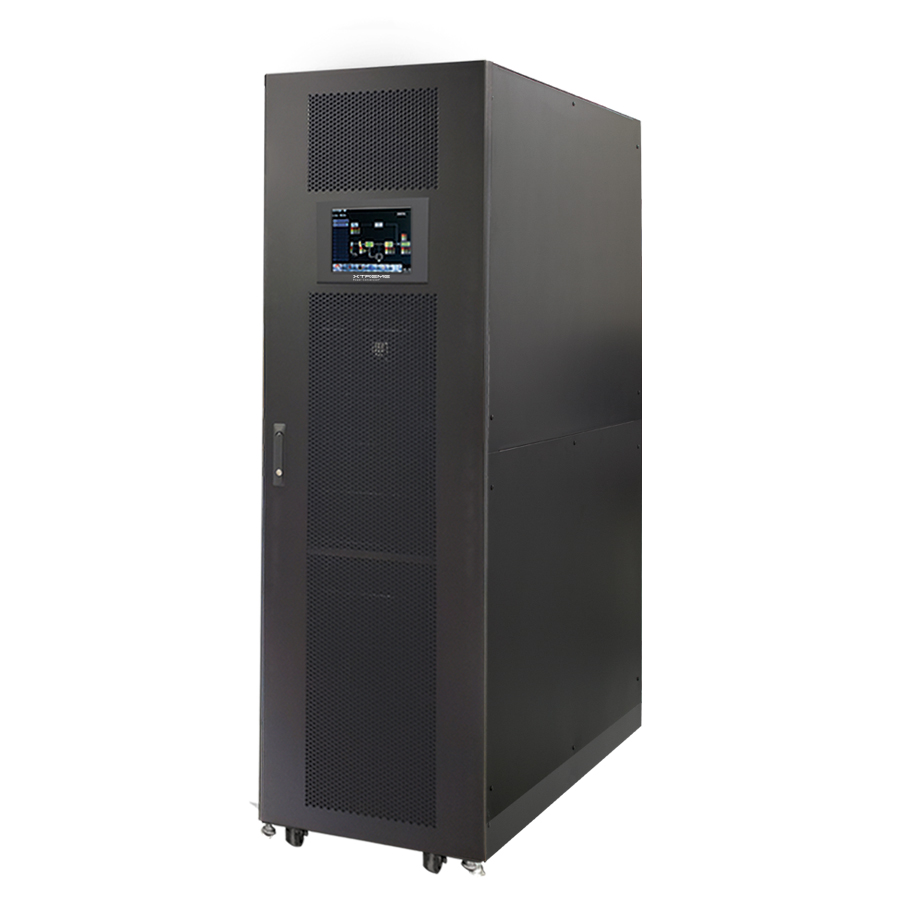

Xtreme Power M90-80



The M90-80 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90-80 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. Because the modules are independent, they can be hot swapped without risk to the critical load.

Features:
  • Capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW, 80kVA/72kW
  • Modular for capacity or redundancy
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)

Specifications:
  • Power Rating: 20-80 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power M90-80

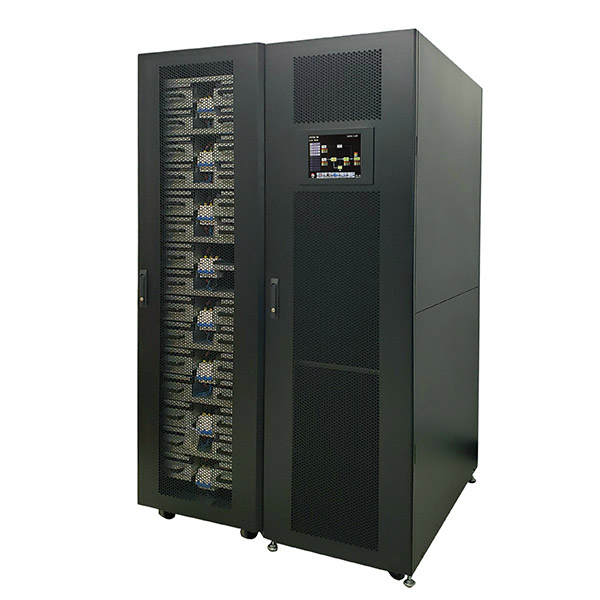

Xtreme Power M90-140



The M90-140 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90-140 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. Because the modules are independent, they can be hot swapped without risk to the critical load.

Features:
  • Capacities: 15kVA, 20kVA, 30kVA, 40kVA, 45kVA 60kVA, 75kVA, 80kVA, 90kVA 100kVA, 105kVA, 120kVA, 140kVA
  • Modular for capacity or redundancy
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)

Specifications:
  • Power Rating: 20-140 kVA
  • Voltage: 120, 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Xtreme Power M90-140
