POWERVAR PRODUCTS

AMETEK Powervar is a leading global provider of advanced power quality solutions. AMETEK Powervar’s transformer-based power conditioners and uninterruptible power supplies provide complete power quality solutions to the medical, industrial, and retail technologies markets. Our business philosophy is built on the core belief of providing customer value through collaborative partnerships, innovation, and technologically advanced solutions.

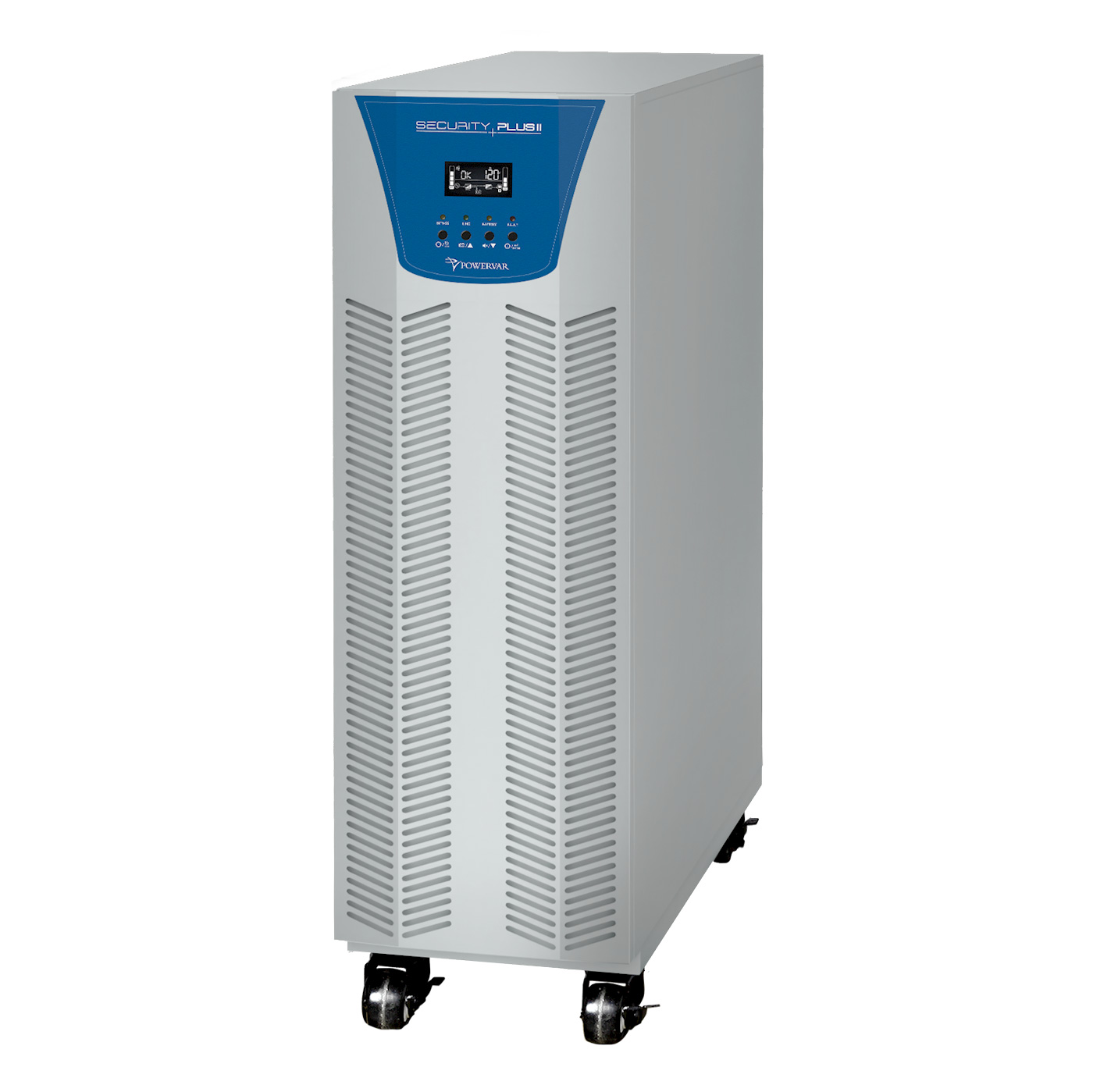

Security Plus II



The Security Plus II Series delivers a powerful combination of industry leading capacity, efficiency, and user-friendly features - all within a sleek, space-saving footprint - to ensure seamless performance and a positive return on your investment.

The Security Plus II Series features Powervar’s proven low impedance isolation transformer technology and an unprecedented load inrush capacity so oversizing, and overspending, is never an issue. Customizable PDUs and front access allows quick and easy on-site connection and serviceability. The result is the most reliable power protection available and a lower total cost of ownership.

Features:
  • All models are CE marked
  • Powervar’s proven low impedance isolation transformer
  • Customizable back panel for direct plug-in installation
  • 1.0 output power factor
  • Diverse input voltage options
  • Tight voltage regulation
  • Low input THDi
  • High load inrush capacity
  • Integrated SNMP card slot
  • ECO mode
Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41

Powervar’s three-year warranty (two-year on batteries) on parts and labor provides complete peace of mind.

Specifications:
  • Power Rating: 2-10 kVA
  • Voltage: 120V, 208V, 240V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Powervar Security Plus II

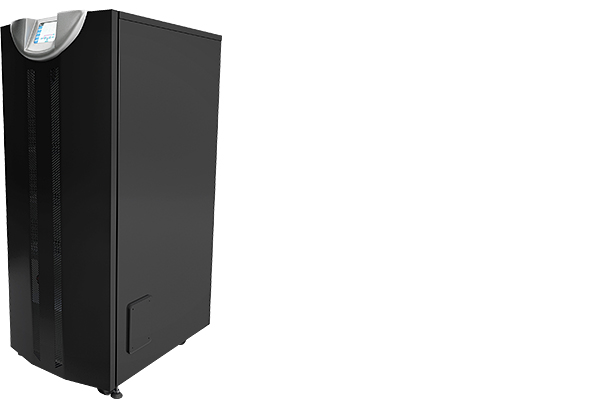

Powervar 3200 UPS



The 3200 Series Three-Phase Uninterruptible Power Supply (UPS) is designed for small data centers and critical load applications. AMETEK Powervar 3200 Series’ reliability and superior design has one of the smallest footprint in the industry which translates to more data center space for additional computer racks.

Features:
  • 300% overload – sustain for 10 seconds online
  • High-efficiency rate, up to 93%
  • Product sizes range from 10 kVA to 40 kVA
  • The most advanced IGBT technology, wide input voltage range
  • All models are UL and cUL listed
  • Front and top access for serviceability
  • Integrated SNMP network card and Modbus ports to remotely monitor and manage the UPS system
  • Two-year warranty (includes batteries)
Accessories:
  • Matching Transformer Cabinets
  • Matching Extended Battery Cabinets
  • Matching Maintenance Bypass Systems
  • DC Disconnects
  • Wall-mounted external Maintenance Bypass Systems
  • Remote Monitoring Panel (RMP)
  • SEISMIC/OSHPD Approved
Specifications:
  • Power Rating: 10-40 kVA
  • Voltage: 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Powervar 3200 UPS




Powervar 3300 UPS



The Powervar 3300 Series Three-Phase Uninterruptible Power Supply (UPS) delivers a powerful combination of superior efficiency and inrush capability, so oversizing your power quality solution is never an issue.

Features:
  • The most advanced IGBT technology
  • 300% overload capacity - sustains for 140 msec online
  • 1.0 power factor
  • High efficiency rate, up to 94%
  • ECO mode, 97% efficient
  • Convenient top and side access for serviceability
  • Remotely monitor and manage UPS with integrated SNMP network card and Modbus
  • All models are UL and cUL listed
  • Two-year warranty (includes batteries)
Accessories:
  • Matching Transformer Cabinets
  • Matching Extended Battery Cabinets
  • Matching Maintenance Bypass Systems
  • System Cabinets
  • DC Disconnects
  • Wall-mounted external Maintenance Bypass Systems
  • Power Distribution
Specifications:
  • Power Rating: 10-40 kVA
  • Voltage: 208V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Powervar 3300 UPS




Powervar 3400 UPS



Imagine power protection that keeps your business running continuously, at peak efficiency, with lower costs, and remote system monitoring – all within one of the smallest footprints in the industry.

Powervar's 3400 Series Three-Phase UPS does just that.

Designed to meet the uptime demands of mid-sized mission-critical facilities, the 3400 boasts the latest IGBT technology and 96.3% efficiency (AC to DC). The space-saving design translates to more data center space, additional computer racks, and overall operational savings.

Features:
  • The most advanced three-step IGBT's in the industry
  • 300% overload capacity - sustain for 240 msec online
  • High-efficiency rate, up to 96.3%
  • Convenient front access for serviceability
  • Remotely monitor and manage UPS with integrated SNMP network card and Modbus
  • All models are UL and cUL listed
  • Two-year warranty (includes batteries)
Accessories:
  • Matching Transformer Cabinets
  • Matching Extended Battery Cabinets
  • Matching Maintenance Bypass Systems
  • DC Disconnects
  • Wall-mounted external Maintenance Bypass Systems
  • Remote Monitoring Panel (RMP)
  • Power Distribution
Specifications:
  • Power Rating: 80-125 kVA
  • Voltage: 480V
  • Frequency: 50/60 Hz
  • Configuration: Tower

Link to product brochure:
Powervar 3400 UPS


Our Product Selection

We have partnered with several of the best UPS manufacturers in the industry. They have been chosen on the basis of design characteristics and reliability. Our technicians are thoroughly trained on each brand. We can supply and maintain any type of uninterruptable power system.

Select one of our partnered manufacturers below to view their products:
